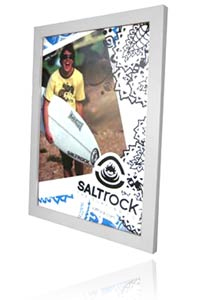

Katana Pro Ultra Slim Light Box

Internal
Thin
Front Loading
Aluminium Snap Frame
Edge lit
Flat Frame


Katana Pro ultra slim light boxes have a modern flat aluminium front loading snap frame instead of the curved frame that the classic Katana light box has. It is manufactured within Europe to the highest quality using top-grade branded components and is CE certified. The light box is able to be so ultra thin as it is edge-lit using slim T5 fluorescent tubes which light up the acrylic illumination sheet at two sides for optimum light distribution. The aluminium snap frames are just like poster frames which snap open and shut enabling quick and simple poster changes. Standard poster sizes light boxes are held in stock in a silver anodised finish as standard. Alternatively custom made sizes can be produced and they can be powder coated to a RAL colour if required. The Katana Pro light box is the choice for the discerning blue-chip retailer due to its high all-round quality and sleek styling.

Specification
Dimensions: Standard poster sizes A0, A1, A2, A3 and custom sizes up to poster size of 1800mm x 1200mm

Depth: 35-37mm deep for single sided, 44-46mm deep for double sided

Snap Frame width: 48mm wide for A2 and smaller, 56mm wide for A1 and larger

Back Panel: 1mm aluminium sheet, coated white (RAL 9010) on the inside for optimal light reflection.

Colour: Silver Anodised as standard, or your choice of RAL colours

Front sheet: Polycarbonate anti-glare.

Edge-lit panel: 8mm/10mm Elit clear acrylic

Illumination: T5 Daylight tube EC approved.* Electronic ballast. Cable and plug

Certification: This product is ce approved
