External
Front Loading
Hinged
Aluminium
Edge lit
Lockable

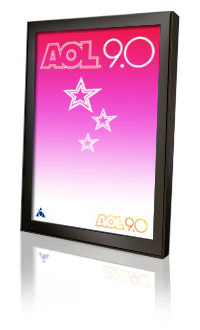

The Scimitar external slim light box is the big brother of the Sabre light box. Like the Sabre, the Scimitar also has a lockable frame mounted on hinges, enabling quick and easy change of graphics via a special key. The addition of gas stays and an automatic power cut off for extra security and safety is a highlight of the Scimitar and offers you peace of mind when purchasing this unit for usage in places such as car parks, high streets, bus shelters and other public places. The overall depth of the light box is just 57mm. This light box is only available in 1750mm x 1188mm or A0 (1189mm x 841mm).

Specification
Poster Size: A0 / 1750mm x 1187mm

Profile: Base and top profile, facilitated by 2 gas stays To change the poster one has to unlock the top profiles with a special key so that the top frame can be swung open and the poster can be changed via a snap profile. In between the top and base profile, there is a rubber sealing to make the product water resistant.

Light box Frame: Aluminium back panel, with hinged frame, only 57mm deep. Requires security key to open.

Colour: Painted to RAL 9005 Black

Light box depth: 57mm

Protective sheet: Toughened glass 5,0 mm, provided with a 80mm screen printed border.

Electrical: 2 x 54W FQ T5 tubes (A0) / 2 x 80W FQ T5 tubes (1750mm x 1187mm), cable and plug. An electrical interrupter automatically switches off the power when the light box is unlocked. EC approved.*

Certification: This product is CE Certified.

IP Rating: IP66 (Totally protected against dust; Protected against high pressure water jets from any direction. Limited ingress permitted.)
