Internal
Ultra thin
Aluminium
Single side
Edge lit with LEDs
Sizes A0, A1, A2, A3, A4, B1, B2 and custom sizes


The GGE LED light box is the ultimate ultra slim light box for promotional display graphics, with all-round superiority over similar products in relation to high brightness, even light distribution, best build quality and energy efficiency. GGE LED light boxes are manufactured to the highest quality within China (CE certified) using top grade aluminium and branded electrical components. The LED light box is so slim line they are also referred to as an illuminated poster frames, LED light frames or LED light panels. They are only 31.5mm deep single sided including a thin semi curved front loading snap frame of only 35.8mm wide for quick and easy graphic change. The GGE light box can be made this thin because it uses high brightness LED lamps to illuminate a sheet of pure clear acrylic from the side which emits the brightest and most even illumination available from an edge lit light box. GGE light boxes are available in standard poster sizes or they can be custom made to specific size requirements. The aluminium light box profiles come in a silver anodised finish as standard or can be powder coated to a choice of RAL colour.

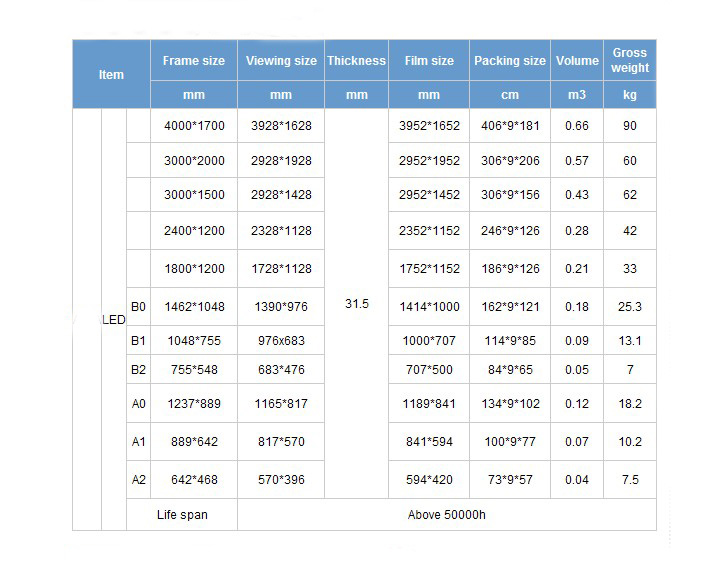

Dimensions: Standard poster sizes A0, A1, A2, B0, B1, B2 and custom sizes up to poster size of 3000mm x 1800mm

Depth: 31.5mm deep for single sided

Colour: Silver Anodised as standard, or your choice of RAL colours

Illumination: High bright white LEDs*

Light output: 1200 to 1600 lux

Certification: This product is ce approved - CE Certified.

*LEDs used have an average expected lifetime of 50,000 hours

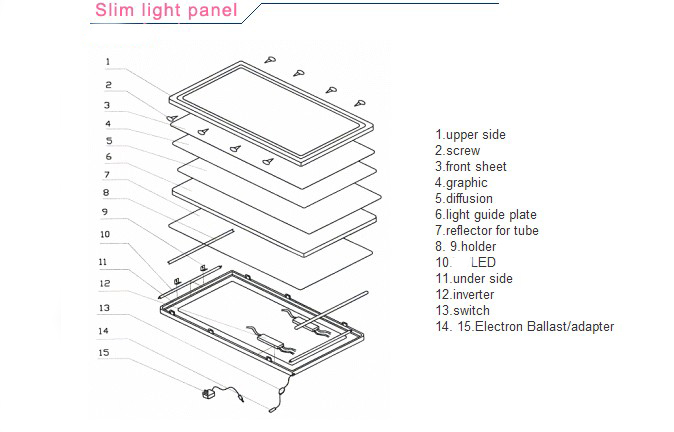

Structure:

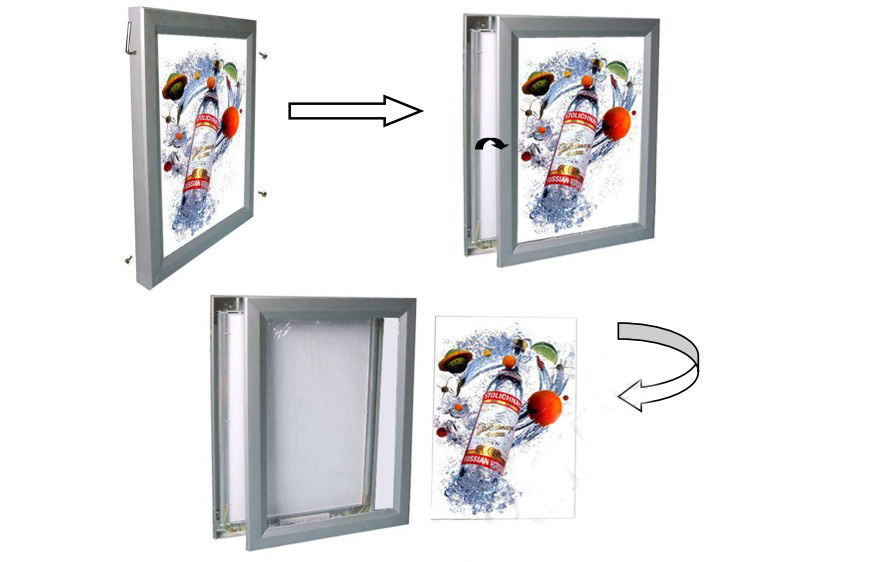

How to change the Graphics:
