Internal / External
Side Loading
Aluminium
Backlit

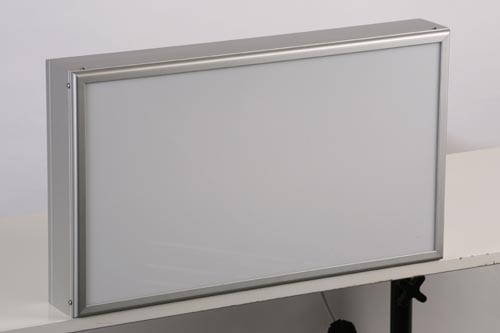

Our GGE Backlit light boxes are made in aluminium with two acrylic front panels to sandwich the print between. They are made for external or internal usage and can be made single or double sided with a standard finish of anodised silver but can be powder coated in a range of colours. The backlit light box has recently been streamlined and is now only 90mm deep depending on size and application. They can be supplied in standard poster sizes (A3, A2, A1 & A0) and can also be custom made to your specifications. For larger sizes we can offer a printed PVC facia or 'flexi skin' which is stretched over the front of the light box in replacement of the acrylic panels.

Backlit Light Box - Specification

Dimensions: A0, A1, A2, custom

Profile: 90mm deep. Fixed aluminium profile with fastening screws at side.

Colour: Silver Anodised

Diffuser panel: 3mm acrylic panel (050 opal)

Protection panel: 2mm acrylic panel (Anti glare)

Illumination: T8 tubes or LEDs

Corners: Mitred

Access to poster: Screws at sides release top of profile to access panels
